PVT Sensor
INNOSILICON™ PVT Sensor IP is designed for on-chip monitoring of processes, voltage, and temperature variations. It is a critical component in modern SoC designs, enabling real-time measurement and monitoring of environmental and operational conditions. It offers a reliable solution for chip operating condition monitoring applications, such as power supply IR drop measurement, high temperature alert, and dynamic performance adjustment.
Process/Voltage/Temperature Sensor

The PVT Sensor IP consists of SAR ADC, bandgap circuit, oscillator, and digital logic. The SAR ADC is a successive approximation analog-to-digital converter. The bandgap circuit generates an accurate reference voltage for the SAR ADC and automatically adjust the supply voltage based on temperature coefficients. This temperature-related voltage or external input voltage is sampled by the SAR ADC and converted to a digital signal. The oscillator generates a clock for process corner detection. The digital logic receives clock and control signals from SoC, and then it outputs measurement results to SoC.

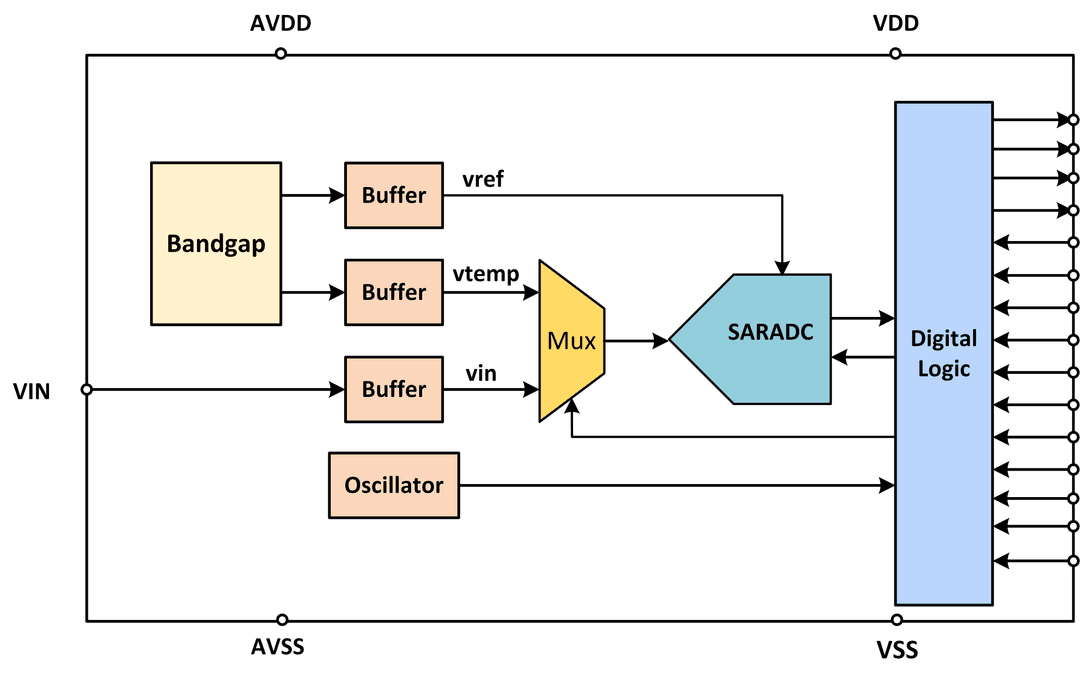

PVT Sensor Block Diagram
  • Benefits
  • Features
  • Deliverables
  • Applications
