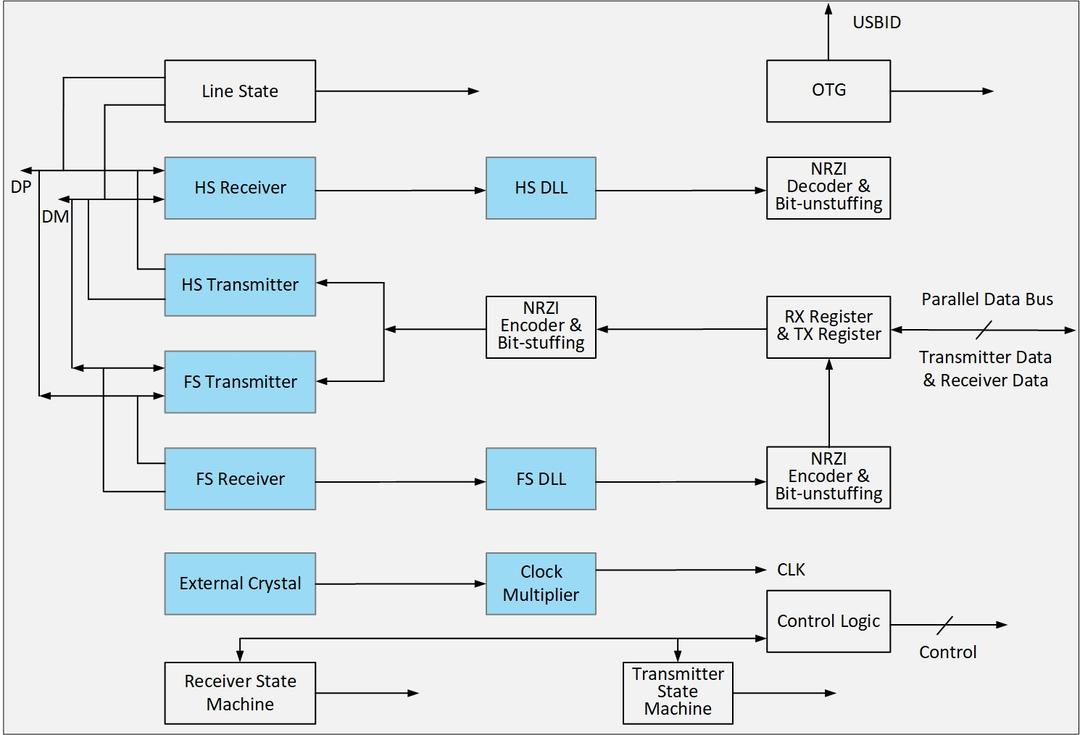

The INNOSILICON™ USB 2.0 IP is capable of handling the low-level protocol and signaling. In transmitting mode, the PHY serializes data, performs bit stuffing following NRZI encoding when needed, and then generates SYNC and EOP fields. Likewise, in receiving mode, it recovers clock from incoming data, strips the SYNC and EOP fields, performs NRZI decoding with bit un-stuffing when needed and then de-serializes the data. It supports 17 modes of operations, including LS, FS, HS, On-The-Go, Device , Host and HSIC.
The INNOSILICON™ eUSB 2.0 IP supports both native and repeater mode. In the native mode, it is intended for board-level chip-to-chip communication. In the repeater mode, it supports standard USB 2.0 communication through a separate eUSB 2.0 repeater component.
